immudb & Minio: immutable ledger database instead connected to an object storage. A fast and safe alternative to blockchains.

immudb & Minio: immutable ledger database instead connected to an object storage. A fast and safe alternative to blockchains.

Traditional database transactions and logs are mutable, and therefore there is no way to know for sure if your data has been compromised. immudb is immutable. You can add new versions of existing records, but never change or delete records.

This lets you store critical data without fear of it being tampered as immudb automatically stores the data versioned, timestamped and cryptographically verifiable..

In some situations it’s not possible or cost effective to use blockchains because of high latencies, high transaction fees or data size limits. Same is true for AWS QLDB, that is centralized, too slow for many applications and with a full vendor lock-in.

immudb is a great open-source alternative to blockchains and other ledger technologies. Unlike these, immudb can handle millions of transactions per second, supports KV and SQL as well as BLOBs.

Use cases

  • Bank / Finance / Insurance
  • Regulatory Compliance and Audit
  • Supply Chain Management
  • Identity Management

SQL and/or NoSQL

Immudb can operate both as a key-value store, and/or as a relational database (SQL).

Separating compute and storage

Immudb can store its data in an AWS S3 bucket or a compatible alternative. Here we are going to use Minio to deploy an object storage with low latency close to the immudb instance. That way the increased storage space usage over time is easy to manage and the performance much better than AWS S3. On Elestio It’s possible to resize network disks up to 10 TB per volume. You can also create a cluster of several MinIO instances to enable high availability and increase the global storage size.

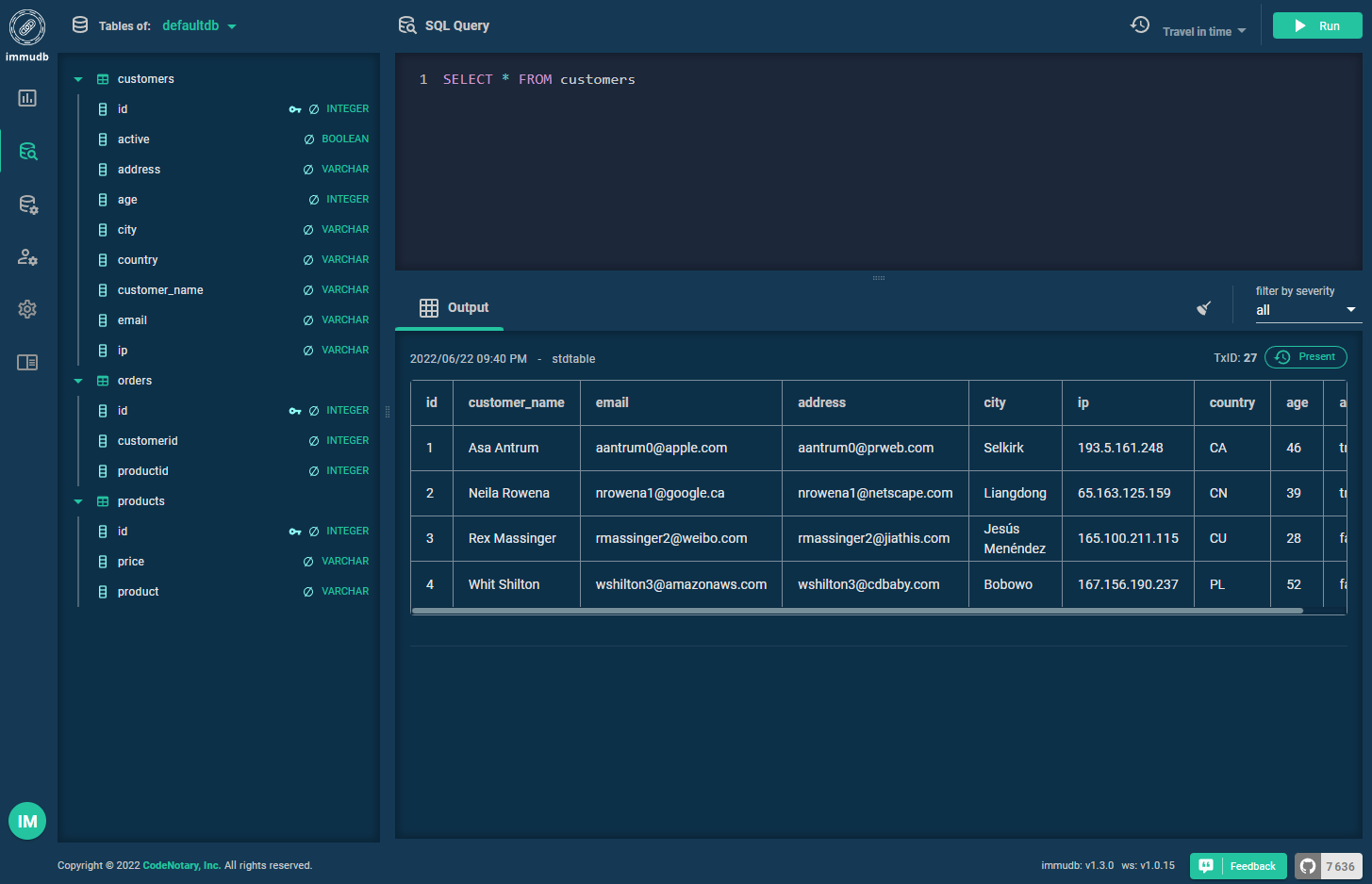

SDKs are available for Java, Go, .NET, Python and Node.js. A REST API is available for all other languages. A web UI (Port 8080) is available, it provides some metrics and allows to browse the db and execute queries. When using Prometheus to monitor applications you can leverage the built-in metrics export running on port 9497 on /metrics.

Get a running instance of immudb in few minutes
Elestio makes it easy to deploy a dedicated instance of immudb on any cloud, we take care of providing the cloud resources (except if you prefer to BYOVM or deploy on-premise) and doing all the devOps part including security, reverse proxy with SSL configuration, monitoring/alerts, backups, updates and migrations.


Step 1: deploy a dedicated immudb instance
click here:

Elestio dashboard > Services > New
Elestio dashboard > Services > New

There you can select your prefered cloud provider or use BYOVM to deploy on your own cloud or on-premise. Then select your prefered region, it should be as close as possible to your users. We have a selection of 80 datacenters in 27 countries.

Then choose the instance size from 1 CPU/1GB RAM up to 32 CPU/128GB RAM

Finally click on the “Create service” button. Few minutes later your immudb instance will be ready to use. You will receive by email a quickstart with few samples.

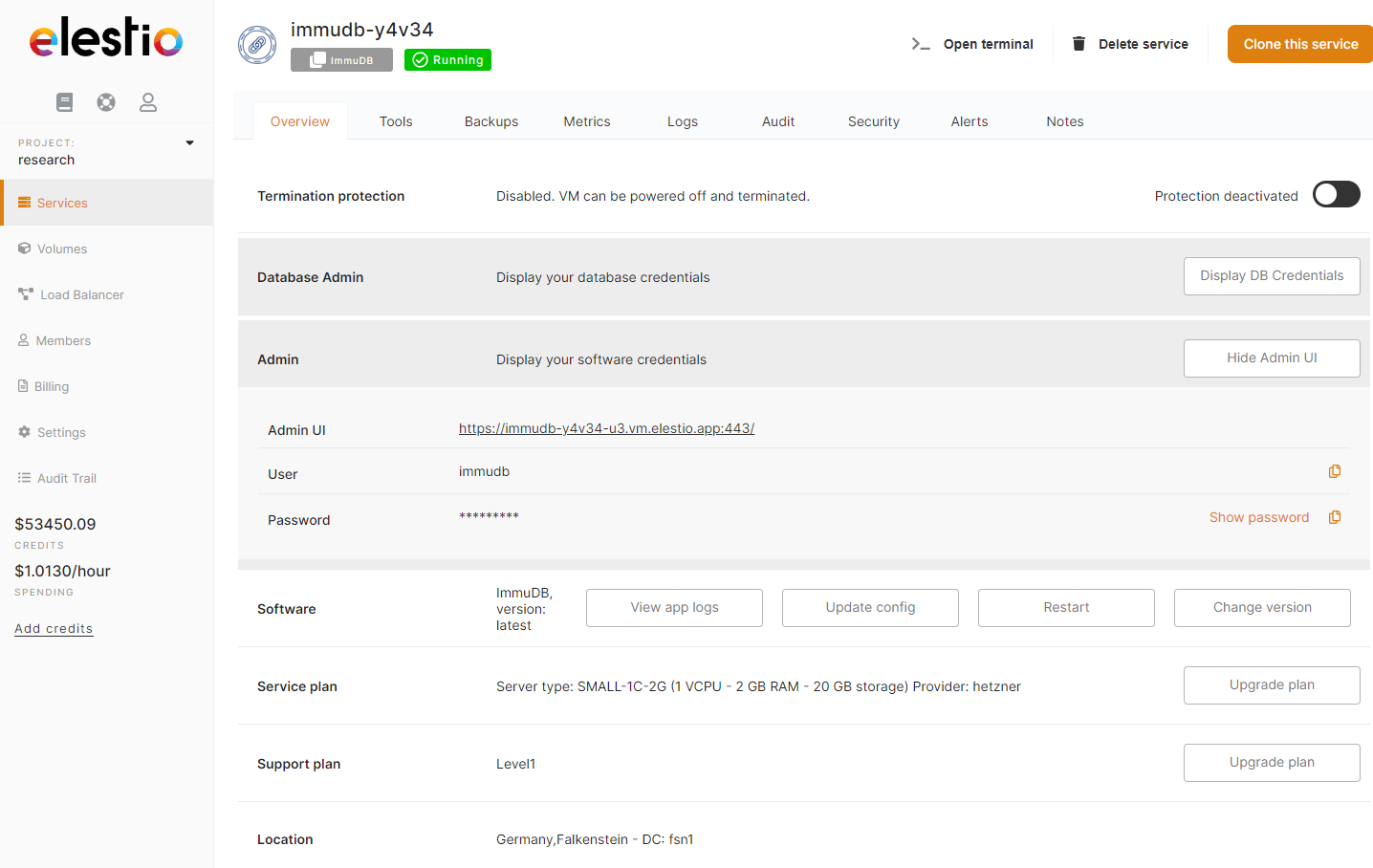

Elestio dashboard > Services > Overview of immudb instance
Elestio dashboard > Services > Overview of immudb instance

Step 2: deploy a dedicated MinIO instance
Click here:

The MinIO instance should be deployed in the same dc to reduce latency. You should choose the instance size based on your needs. you can start with the smallest one and increase as needed.

Once deployed, click on the “Admin UI” button to get the endpoint and credentials for your MinIO instance:

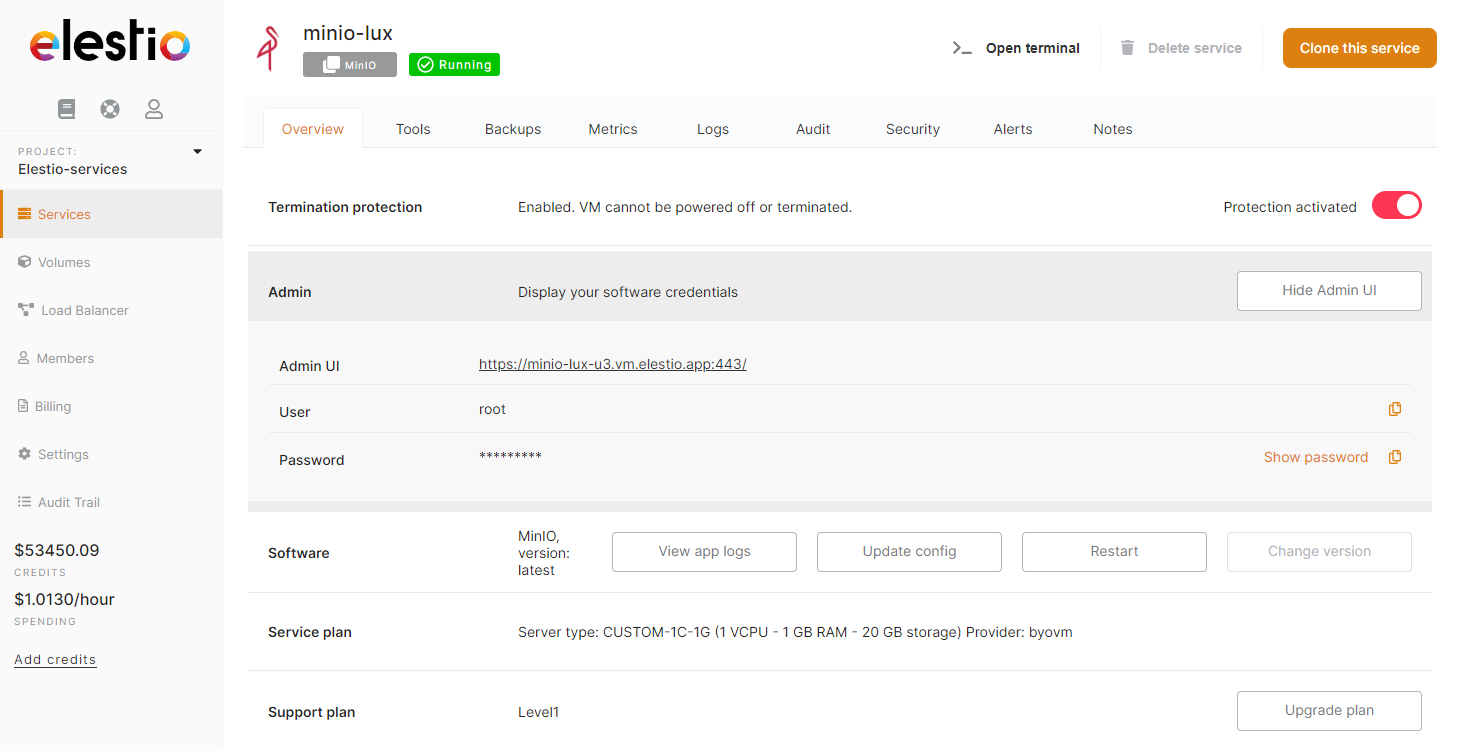

Elestio dashboard > Services > Overview of MinIO instance
Elestio dashboard > Services > Overview of MinIO instance

Log into MinIO with the credentials then create a new S3 bucket for immudb (my-immudb)

MinIO web UI > Create Bucket
MinIO web UI > Create Bucket

Step 3: Configure immudb to store data in our new bucket
Go back to Elestio dashboard > your deployed immudb instance > there click on “Update config” button > Env tab > add those env variables there:


Finally click on the Update & Restart button, few seconds after your immudb instance will have restarted and is configured to use your S3 bucket.

Step 4: Check the console output (Server Logs)
After the restart immudb automatically starts storing the databases on the configured S3 bucket. You can see the configuration in the console output (Server Logs) and that the S3 storage endpoint is used.

The Prometheus metrics exporter comes in handy to track the current state of the S3 sync, you can test it with this curl command:

curl -s | grep immudb_remoteapp_chunk_count

and by database:

curl -s | grep remote | grep kind

You should see an output similar to this:

# HELP immudb_remote_storage_kind Set to 1 for remote storage kind for given database
# TYPE immudb_remote_storage_kind gauge
immudb_remote_storage_kind{db="defaultdb",kind="s3"} 1
immudb_remote_storage_kind{db="rand27584",kind="s3"} 1
immudb_remote_storage_kind{db="systemdb",kind="s3"} 1
immudb_remote_storage_kind{db="testdb",kind="s3"} 1

Hint: The data is first stored locally and then transferred to S3 whenever the chunks reach a certain size (1MB default) or immudb is shutting down (i. e. maintenance, restart). Therefore don’t worry if you don’t see real data on S3 within the first minutes of operations.

Step 5: use immudb in your applications
You can find many examples how to use immudb in your applications

in the online manual:

or in the SDK examples repository:
